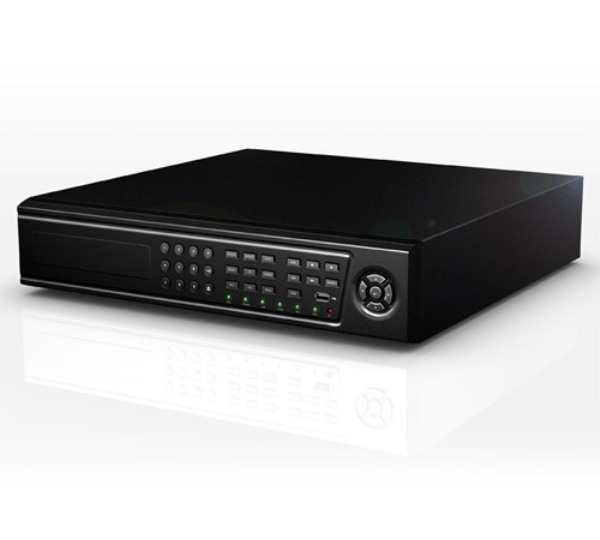

Model Name

RYK-9266

Operating System

Embedded Linux OS

Video System

NTSC / PAL Switch Select

Video Input

16BNC

Video Input Level

1.0Vp-p Composite, 75 Ohm Balanced

Video Output

1BNC for CO-Monitor or 1BNC for SPOT Monitor.

Video Looping Out

16CH

HDMI Output

Video Output [1024x768, 1280x1024, 1366x768, 1440x900] + Audio Output

VGA Output

1 Port

Audio Input

16RCA

Audio Input Level

0.5~1.4Vp-p@20K Ohm

Audio Output

2RCA

Sensor

16 input / 4 output

RS-485

Pan/Tilt/Zoom Control From RS485 Interface ( Pelco P, Pelco D, Samsung, LG, LiLin )

USB Port

2 x USB2.0

Mouse

USB Mouse

IR Remote Controller

Max. 4 Device

HDD Support

Supports Max. x 4 SATA Devices (HDDx4, HDDx3+DVDx1, HDDx3+eSATAx1, HDDx2+DVDx1+eSATAx1)

DVD Writer

Optional

Display Division

1,4,9,13,16 SEQ.

Video Compression

H.264

Audio Compression

ADPCM

Dual Stream Resolution(Main Recording)

704 X 480, 704 X 240, 352 X 240 (NTSC) / 704 X 576, 704 X 288, 352 X 288 (PAL)

Dual Stream Resolution(Sub Network)

176 x 240 (NTSC) / 176 x 288 (PAL)

Recording Frame Rate

D1 480 fps(704 x 480), HD1 480 fps(704 x 240), CIF 480 fps(352 x 240) /
D1 400 fps(704 x 576), HD1 400 fps(704 x 288), CIF 400 fps(352 x 288)

Picture Quality

10~100 levels for adjustment

Record Mode

Continuous, Event and Schedule

Pre-Alarm Recording

1 ~ 10 SEC

Post-Alarm Recording

1 ~ 100 SEC

Motion Detection

Detected Frames: Unlimited / Channel ; Area : Programmable individually ; Sensitivity : 100 levels for each channel

Search Mode

Time, Event Log

Playback Speed

Play, Pause, Stop, Slow(1/2, 1/4, 1/8), FF(4, 8, 16, 32), REW(4, 8, 16, 32), Frame Step, Seek Bar, Focus

Backup Mode

Remote Software, USB Flash Drive, USB DVD±RW, SATA DVD±RW

Network Application

HUAWEI USB Modem

Network Software

iPhone, iPad, Android, Windows Phone 7

Network Users

1 Admin + 8 Users

Network Protocol

TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP

3G Modem

HUAWEI USB Modem

Mobile System Support

iPhone, iPad, Android, Windows Phone 7

Remote Notification

E-mail

Daylight Saving

YES

Event Log List

Up to the 10000 events (Sensor, Motion, video Loss, power on, remote login, logout, HDD error, HDD full)

Watermark

YES

Touch Panel Interface

Touch Panel LCD Monitor (USB Interface, EETI Chipset Only)

Key Lock

YES

Firmware Update

USB Flash Drive

Dimension

430mm (W) x 95.2mm (H) x 422.1mm (D)

Power

110V / 220V

Power Source

220W

Operating Environment

30 ~ 80% RH, 5°C~40°C (41°F~104°F)
