Falco IP Car Park System is specially designed for small to large car parks area. Each Car Park Controller caters for one entry barrier and one exit barrier and all the barrier controller are link through TCP/IP network. All programming can be done through a PC/notebook with cross cable or through a networked server . By using the Falco IP System the optional car park module with video integration can be activated.

With this module, you able to view the entry event transaction video when you are exiting from the respective gates or turn stile. Upon proxing on the exit reader, the latest entry event transaction will be search and the video will pop up on one side of the display window in the server or remote workstation. The other side of the display window will show the live or exit transaction event video. Hence the security officer or car park attendant can compare and check if the same car or person enters is the same as the exit object. If the security officer suspected something is wrong he can always sound the alarm or use the require video as evidence. This enhances the security of the car park.This integrated access control system enables the users to have the ability to launch the video from transaction events of the access control system as located on Falco Premium Video software. The feature offers a simple and fast way to display live or recorded video with just a few click of the mouse.

Feature

• Suitable for small to large car parks
• Stand-alone or networking operation with PC
• Stores up to 100,000 card users
• Records up to 50,000 transactions/events
• Global Anti pass-back control
• Support Magnetic, Wiegand, Proximity, Smart Card, HID long range
• Wide selection of reports can be printed

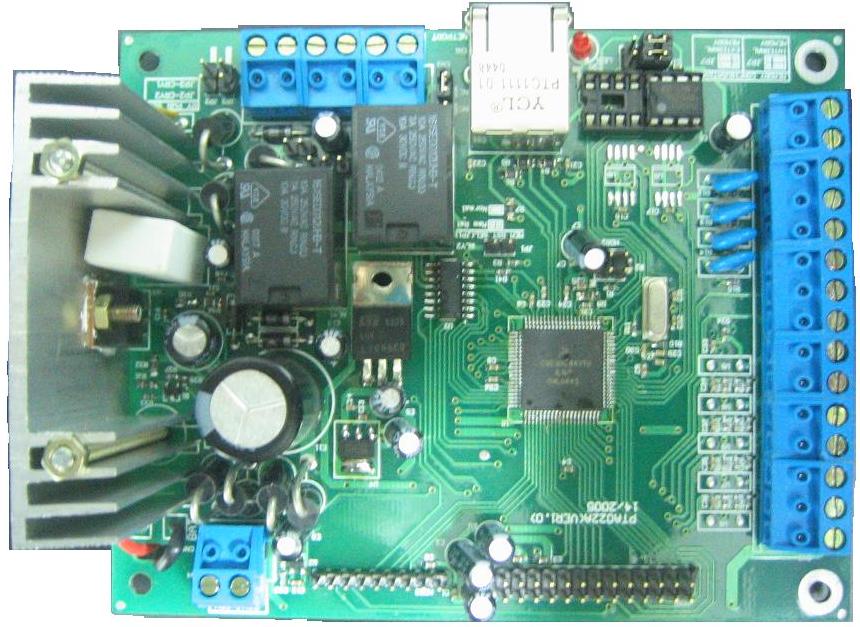

 Specification

• MCU : Motorola/ Freescale 16-bit CPU Running at 25Mhz
• Memory : 64KB FlashROM, 8KB RAM, 32KB EEPROM
• Watchdog : 1 Internal
• Operating Temperature: 0?/span>C to 60?/span>C
• Humidity Range: 0-95% non-condensing
• Protocol Support: TCP, IP, UDP, DHCP, ICMP, and ARP
• Network Interface : TCP/IP, LAN, WAN
• Communication Interface : Onboard Ethernet Port (TCP/IP)10/100BaseT
• Relay Output : 10A (2 Form C- can configured to NC or NO)
• Power Supply : 14VAC input, 13.8V output, 1.5 ~ 3.0A output
• Current Consumption : 200-300mA (without the EM Lock)/1.5A max
• Dimensions : 50mm(H) x 152mm(W) x 127mm(D)
• Supervised Input :2 Supervised input (Onboard)
• Digital Input : 3 Input
• 2 input is used to detects present of cars.
• Output : 2 Relay Output (Onboard), 3 Open-Collector Power Output (100mA-Onboard) to triggers entry/exit barrier
• Large Memory : Stores up to 100,000 user cards and 50,000 transactions
• Power Fault Detection: Loss of AC Power and battery voltage low
• PIN only, Card only, and Card Plus PIN Operation Modes
• Lock-out of a card when its PIN is wrongly entered repeatedly

Order Information

FALCO-CTRL-1DRSMTCAR-TCP/IP(3.0A): Normal Car Park Barrier IP Controller
