Image sensor

4K 1/2.8” CMOS

Total pixels

3952 (H) x 2320 (V)

Active pixels

3840 (H) X 2160 (V)

Minimum scene illumination

0.012 lux (color)

0.0 lux (B/W)

S/N ratio

50dB

Test Monitor Video Output

Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio

LENS

Focal length

2.8mm, F2.0

Lens type

Fixed lens

HFoV / VFoV

105.5° / 56.3°

IR distance

100ft range

I/O

Audio in / out

1 input / 1 output

Audio compression

G.711

Alarm in / out

1 input / 1 output

OPERATIONAL

Intelligent Video Analytics

IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper

IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left

Shutter mode

Auto, manual, anti-flicker, slow shutter

Shutter speed

1/15 ~ 1/32,000

Slow shutter

1/2,1/3,1/5,1/6,1/7.5, 1/10

Auto gain control

Auto

Day / night

Auto, day (color), night (B/W)

Smart DNR™ 3D digital noise reduction

3D DNR

Wide dynamic range (WDR)

True WDR (D-WDR) On, Off

Wide dynamic range (WDR) dB

120dB

Privacy zones

16 programmable privacy masks

Mirror and flip

Yes

Alarm notifications

Notifications via e-mail, FTP and alarm output

NETWORK

LAN

RJ45 (10/100Base-T)

Video compression type

H.265, H.264, MJPEG

Resolution

H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF

H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF

MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF

Frame rate

Up to 30fps at all resolutions

Video bitrate

100Kbps ~ 10Mbps, multi-rate for preview and recording

Bitrate control

Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)

Streaming capability

Dual-stream at different rates and resolutions

IP

IPv4

Protocol

TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF

Security

HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)

ONVIF conformance

Yes

Web viewer

OS: Windows®, Mac® OS, Linux®
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
NOTE: Chrome browser is recommended for IVA configuration.

Video management software

DW Spectrum^® IPVMS

ENVIRONMENTAL

Operating temperature

-4°F ~ 122°F (-20°C ~ 50°C)

Operating humidity

10–90% RH (non–condensing)

IK rating

IK9 impact resistant

IP rating

IP66-rated

Other certifications

CE, FCC, RoHS

ELECTRICAL

Power requirement

DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)

Power consumption

DC12V: 9.8W

PoE: 13.9W

MECHANICAL

Material

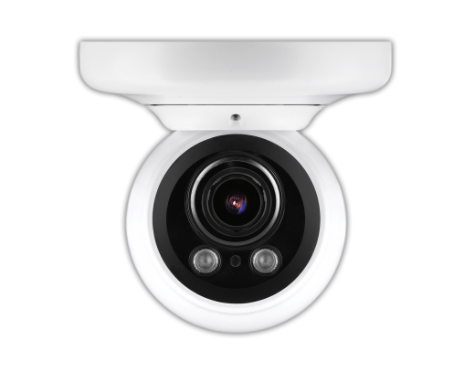

Aluminum vandal ball housing

Dimensions

4.92" x 4.4" (125 x 112mm)

Weight

1.87 lbs (0.85kg)

Warranty

5 year warranty
